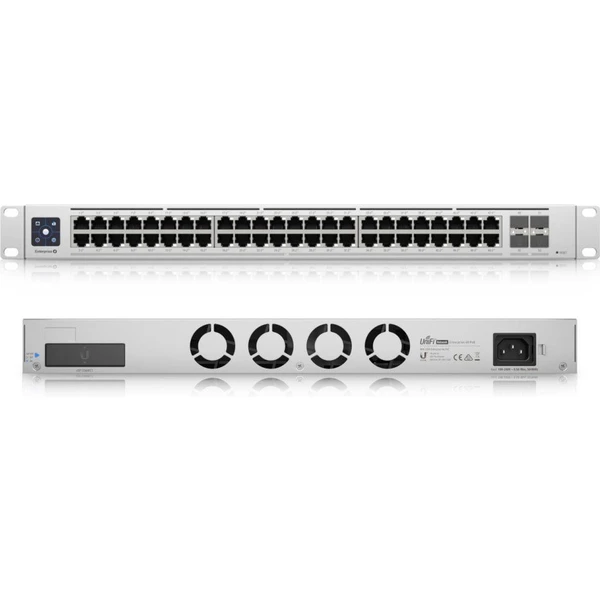

Ubiquiti Enterprise 48 PoE switch

Základní informace

• Networking interface (48) 100/1,000/2,500 MbE RJ45 ports
• Management interface Ethernet In-Band
• SFP+ interface (4) 1/10G SFP+ ports
• PoE interface (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput 160 Gbps
• Switching capacity 320 Gbps
• Forwarding rate 238.095 Mpps
• Max. power consumption 150W (Excluding PoE output)
• Power method (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz, (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
• Power supply AC/DC, internal, 100—240V, 10A Max.
• Total available PoE 720W
• Max. PoE+ wattage per port by PSE 34.2W
• Voltage range PoE mode 44—57V
• Voltage range PoE+ mode 50—57V
• Services SMB Layer 3 PoE GbE Switch
• ESD/EMP protection Air: ± 16kV, contact: ± 12kV
• Button Factory reset
• Operating temperature -5 to 40° C (23 to 104° F)
• Operating humidity 10 to 90% noncondensing
• Certifications CE, FCC, IC
